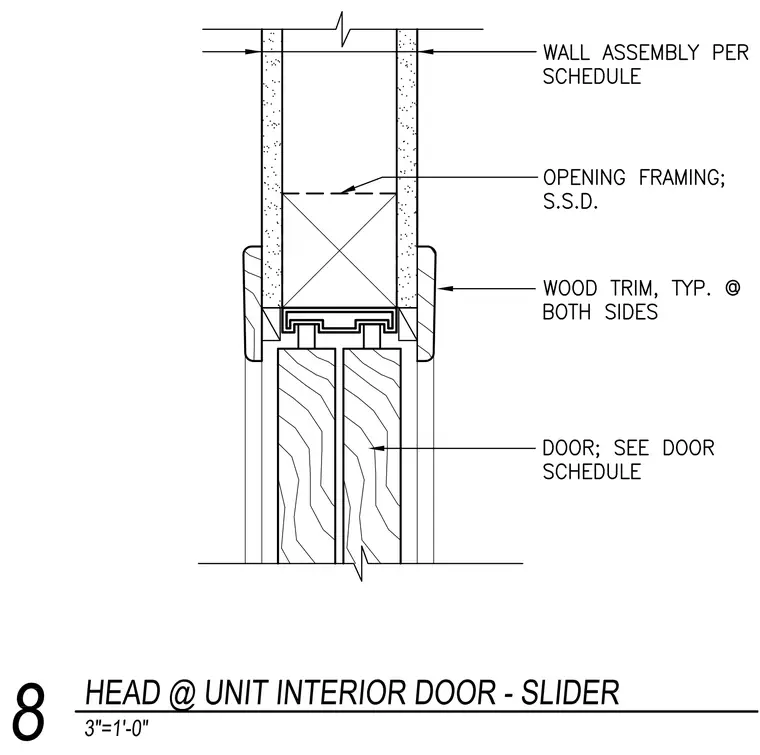

This wall section details the head condition for an interior sliding door assembly. The wall assembly is constructed per the architectural schedule with opening framing sized per structural drawings above the door track. A sliding door track is mounted at the header with wood trim applied typically at both sides of the opening. The sliding door panels are scheduled separately and suspended below the track.
