Double metal studs frame the opening with sizing coordinated per the partition schedule. Three number 10 flathead sheet metal screws secure each side of the bottom track. The stud flanges are cut and the web is turned up. Zero-point-one-four-five-inch diameter Hilti X-DNI powder-actuated fasteners with one-and-a-half-inch embedment anchor the track at sixteen inches on center.

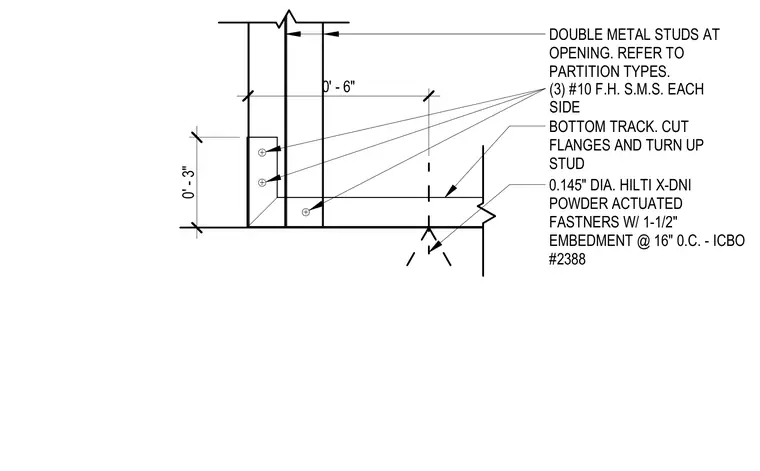

0' - 6" 0' - 3" DOUBLE METAL STUDS AT OPENING. REFER TO PARTITION TYPES. (3) #10 F.H. S.M.S. EACH SIDE BOTTOM TRACK. CUT FLANGES AND TURN UP STUD 0.145" DIA. HILTI X-DNI POWDER ACTUATED FASTNERS W/ 1-1/2" EMBEDMENT @ 16" 0.C. - ICBO #2388
