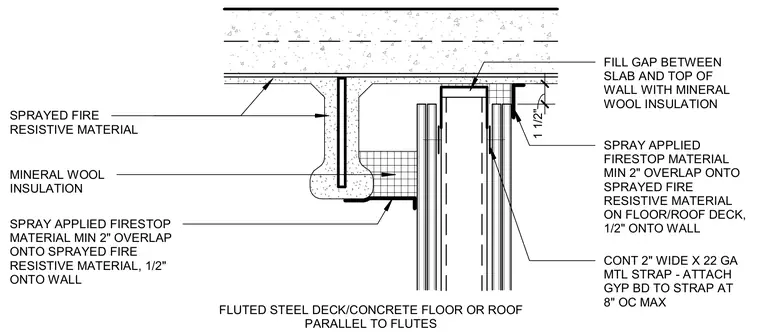

A fluted steel deck with concrete fill meets the top of a wall parallel to the deck flutes, incorporating mineral wool insulation to fill the gap between the slab and wall top. Spray-applied fire-resistive material coats the underside of the floor or roof deck and structural elements. Spray-applied firestop material is applied over the joints with a minimum two-inch overlap onto the fire-resistive material and a half-inch overlap onto the wall. A continuous two-inch wide by 22-gauge metal strap secures the gypsum board, with gypsum board attached to the strap at a maximum spacing of eight inches on center.
FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES SPRAYED FIRE RESISTIVE MATERIAL FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION MINERAL WOOL INSULATION SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL, 1/2" ONTO WALL SPRAY APPLIED FIRESTOP MATERIAL MIN 2" OVERLAP ONTO SPRAYED FIRE RESISTIVE MATERIAL ON FLOOR/ROOF DECK, 1/2" ONTO WALL CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX 1 1/2"
