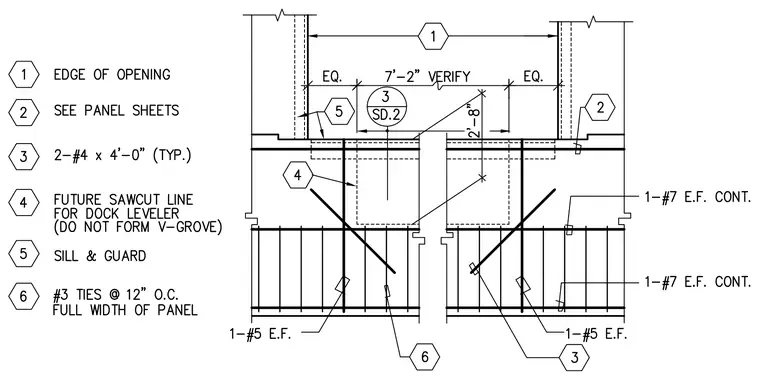

A concrete wall panel opening features a seven-foot two-inch verified clear span between jambs. Reinforcement includes continuous number seven bars each face, number five bars each face, and number three ties at twelve inches on center across the full width of the panel. Diagonal number four bars measuring four feet long are provided at the corners. A dashed indicator marks the future sawcut line for a dock leveler, specified without a V-groove.
