Thin brick veneer is adhered to a concrete tilt-up wall panel using thin brick mortar over a liquid-applied air and water barrier. Concrete tilt-up release agents are thoroughly removed from the substrate via chemical or sandblasting prior to veneer installation. A continuous joint features a backer rod and elastomeric sealant between architectural cast stone elements. The concrete tilt-up panel surface receives proper surface preparation to ensure adequate adhesion of the waterproofing and mortar layers.

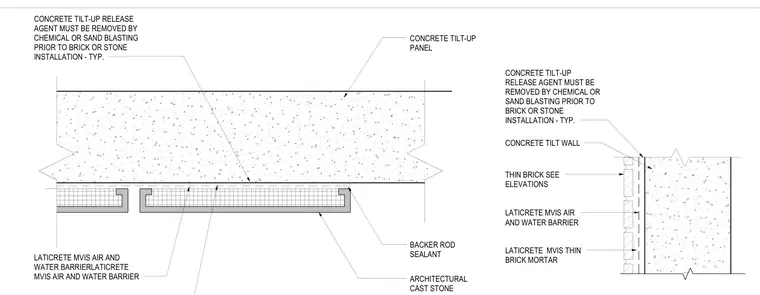

THIN BRICK SEE ELEVATIONS LATICRETE MVIS THIN BRICK MORTAR CONCRETE TILT WALL LATICRETE MVIS AIR AND WATER BARRIER CONCRETE TILT-UP RELEASE AGENT MUST BE REMOVED BY CHEMICAL OR SAND BLASTING PRIOR TO BRICK OR STONE INSTALLATION - TYP. BACKER ROD SEALANT CONCRETE TILT-UP PANEL CONCRETE TILT-UP RELEASE AGENT MUST BE REMOVED BY CHEMICAL OR SAND BLASTING PRIOR TO BRICK OR STONE INSTALLATION - TYP. LATICRETE MVIS AIR AND WATER BARRIERLATICRETE MVIS AIR AND WATER BARRIER ARCHITECTURAL CAST STONE
