Pool Room Tile Base and Stair Waterproofing Detail

Materials

Timber / Wood Masonry / CMU Metal (misc.)

Elements

Walls Facades / Cladding Stairs Railings / Guards Floors / Slabs Foundations / Footings Waterproofing / Flashing Insulation

About this detail

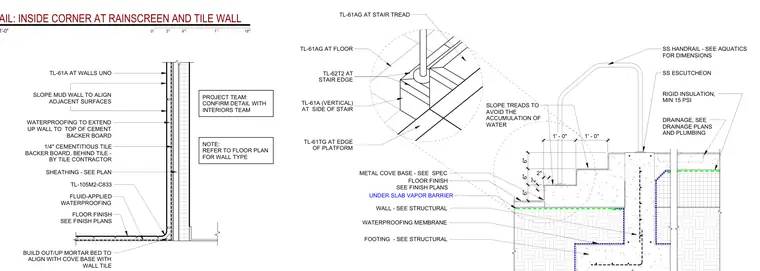

The wall assembly features one-quarter inch cementitious tile backer board installed over sheathing behind tile, backed by fluid-applied waterproofing that extends up the wall to the top of the backer board. The mud wall is sloped to align adjacent surfaces, and a mortar bed is built up at the base to align with the metal cove base and wall tile. Below the slab, a vapor barrier and waterproofing membrane tie into the structural footing. The stair treads are sloped to avoid the accumulation of water, incorporating specified tile finishes, rigid insulation with a minimum of 15 psi, and a stainless steel handrail anchored with an escutcheon.
