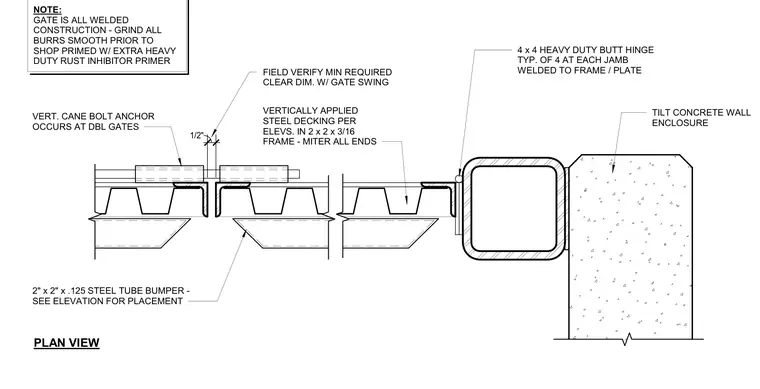

The gate assembly features vertically applied steel decking welded within a two-by-two-inch by three-sixteenths-inch steel frame with mitered ends. Four four-by-four heavy-duty butt hinges are welded to each jamb frame and plate. A two-by-two-inch by point-one-two-five-inch steel tube bumper is placed per the elevations. A vertical cane bolt anchor occurs at the double gates, which maintain a half-inch clearance. All gate construction is welded with burrs ground smooth and finished with a shop primer and extra heavy-duty rust inhibitor.
1/2" NOTE: GATE IS ALL WELDED CONSTRUCTION - GRIND ALL BURRS SMOOTH PRIOR TO SHOP PRIMED W/ EXTRA HEAVY DUTY RUST INHIBITOR PRIMER VERT. CANE BOLT ANCHOR OCCURS AT DBL GATES 2" x 2" x .125 STEEL TUBE BUMPER - SEE ELEVATION FOR PLACEMENT 4 x 4 HEAVY DUTY BUTT HINGE TYP. OF 4 AT EACH JAMB WELDED TO FRAME / PLATE FIELD VERIFY MIN REQUIRED CLEAR DIM. W/ GATE SWING VERTICALLY APPLIED STEEL DECKING PER ELEVS. IN 2 x 2 x 3/16 FRAME - MITER ALL ENDS TILT CONCRETE WALL ENCLOSURE PLAN VIEW
