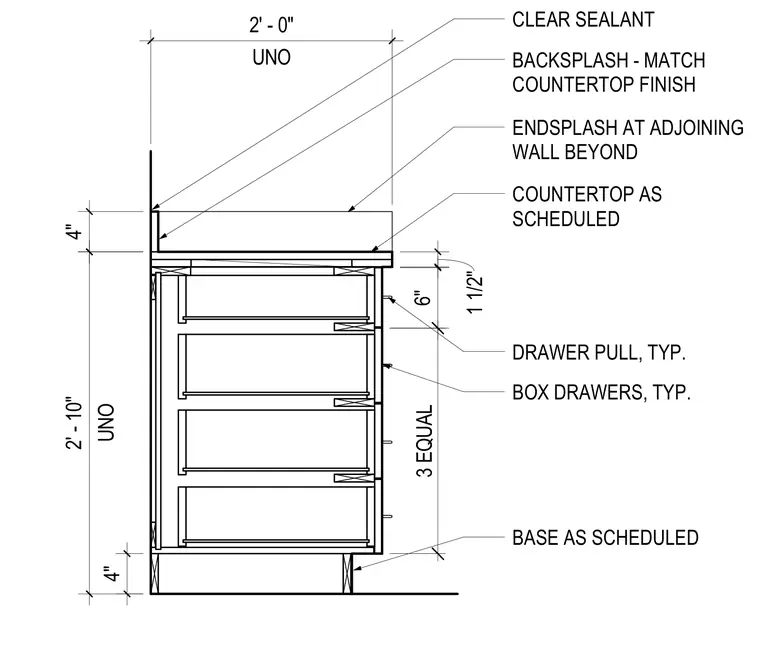

This interior millwork detail shows a base cabinet with four box drawers typical of casework installations. The assembly sits on a base as scheduled with a height of four inches. Four box drawers are vertically spaced with three equal intervals and fitted with typical drawer pulls. A countertop as scheduled spans the top of the cabinet with a depth of two feet unless noted otherwise. A six-inch backsplash matches the countertop finish, and an endsplash is provided at the adjoining wall beyond with clear sealant applied at the joints.
4" 4" UNO 2' - 0" UNO 2' - 10" 1 1/2" BASE AS SCHEDULED DRAWER PULL, TYP. 6" BACKSPLASH - MATCH COUNTERTOP FINISH ENDSPLASH AT ADJOINING WALL BEYOND COUNTERTOP AS SCHEDULED CLEAR SEALANT BOX DRAWERS, TYP. 3 EQUAL
