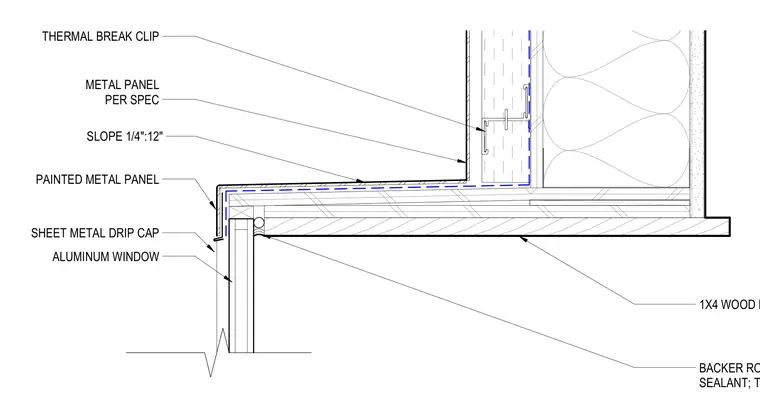

An aluminum window head interfaces with a wood framing structure supporting a painted metal panel per specification. The horizontal top surface slopes at one-quarter inch per foot and is finished with a sheet metal drip cap. A thermal break clip secures the metal panel assembly. Backer rod and sealant seal the joint between the window frame and the wood lining.
1X4 WOOD LINING BACKER ROD AND SEALANT; TYP ALUMINUM WINDOW PAINTED METAL PANEL METAL PANEL PER SPEC THERMAL BREAK CLIP SHEET METAL DRIP CAP SLOPE 1/4":12"
