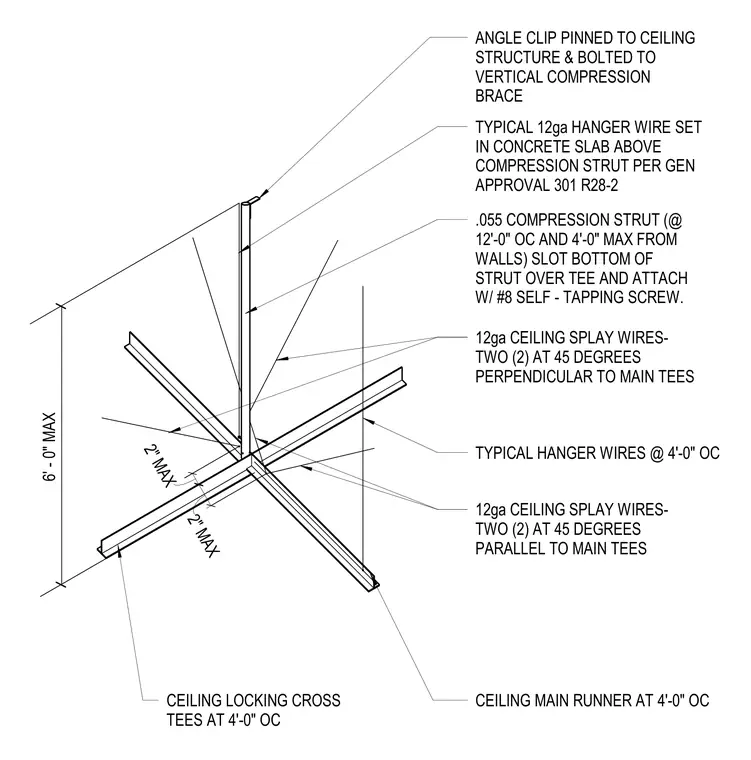

An angle clip pins to the overhead concrete structure and bolts to a vertical zero point zero fifty-five gauge compression strut. The bottom of the strut slots over the ceiling main runner and fastens with a number eight self-tapping screw. Typical twelve-gauge hanger wires suspend the grid at four feet on center. Four twelve-gauge ceiling splay wires extend at forty-five degree angles in perpendicular and parallel pairs relative to the main tees for seismic bracing. Ceiling locking cross tees intersect the main runner at four-foot intervals.
2" MAX 2" MAX ANGLE CLIP PINNED TO CEILING STRUCTURE & BOLTED TO VERTICAL COMPRESSION BRACE TYPICAL 12ga HANGER WIRE SET IN CONCRETE SLAB ABOVE COMPRESSION STRUT PER GEN APPROVAL 301 R28-2 .055 COMPRESSION STRUT (@ 12'-0" OC AND 4'-0" MAX FROM WALLS) SLOT BOTTOM OF STRUT OVER TEE AND ATTACH W/ #8 SELF - TAPPING SCREW. 12ga CEILING SPLAY WIRES- TWO (2) AT 45 DEGREES PERPENDICULAR TO MAIN TEES 12ga CEILING SPLAY WIRES- TWO (2) AT 45 DEGREES PARALLEL TO MAIN TEES TYPICAL HANGER WIRES @ 4'-0" OC CEILING MAIN RUNNER AT 4'-0" OC CEILING LOCKING CROSS TEES AT 4'-0" OC 6' - 0" MAX
