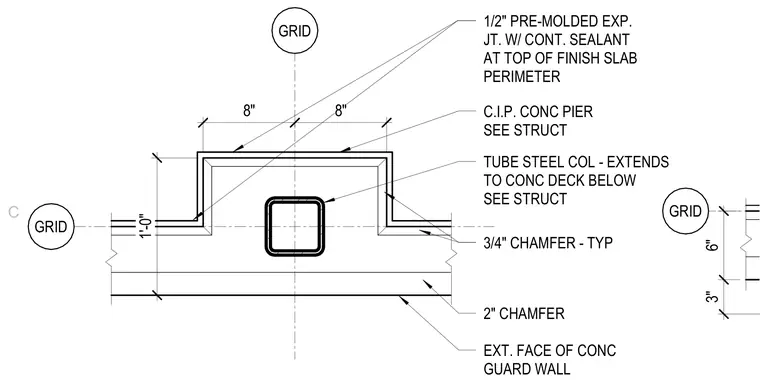

A tube steel column extends to the concrete deck below, centered on grid lines and encased within a cast-in-place concrete pier. The surrounding concrete guard wall features a two-inch chamfer at the exterior face and three-quarter-inch chamfers at typical corners. A one-half-inch pre-molded expansion joint with continuous sealant runs along the top of the finish slab perimeter.
GRID 6" 3" GRID GRID C.I.P. CONC PIER SEE STRUCT 3/4" CHAMFER - TYP TUBE STEEL COL - EXTENDS TO CONC DECK BELOW SEE STRUCT EXT. FACE OF CONC GUARD WALL 1/2" PRE-MOLDED EXP. JT. W/ CONT. SEALANT AT TOP OF FINISH SLAB PERIMETER 2" CHAMFER 8" 8" 1'-0" C
