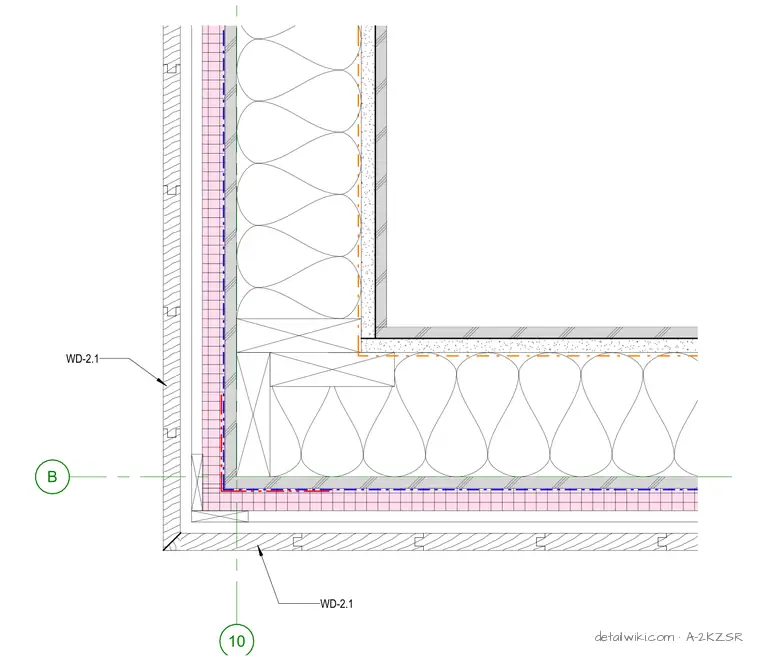

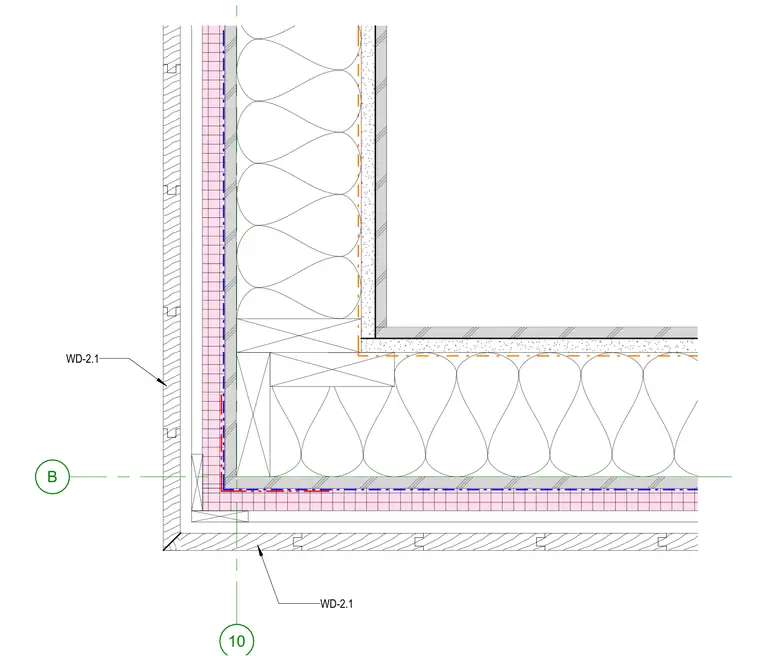

Exterior wood-framed wall corner assembly WD-2.1 consists of exterior siding applied over a drainage plane and sheathing, with batt insulation installed between wood studs. The corner utilizes a standard stud configuration to provide backing for the exterior finish and interior gypsum wallboard. A continuous air and moisture barrier at the exterior sheathing layer wraps the corner to maintain building envelope continuity.
