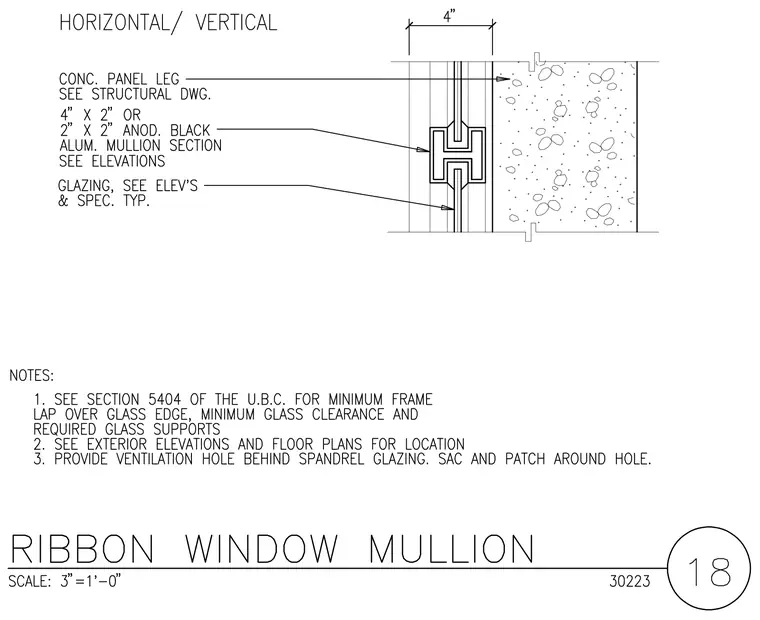

An anodized black aluminum mullion section measuring four inches by two inches or two inches by two inches ties into a concrete panel leg sized per structural drawings. Glazing inserts into the mullion profile with typical edge clearances and supports referenced on exterior elevations and specifications. A four-inch dimension establishes the layout spacing, and project notes specify ventilation holes behind spandrel glazing with sack and patch repairs.
