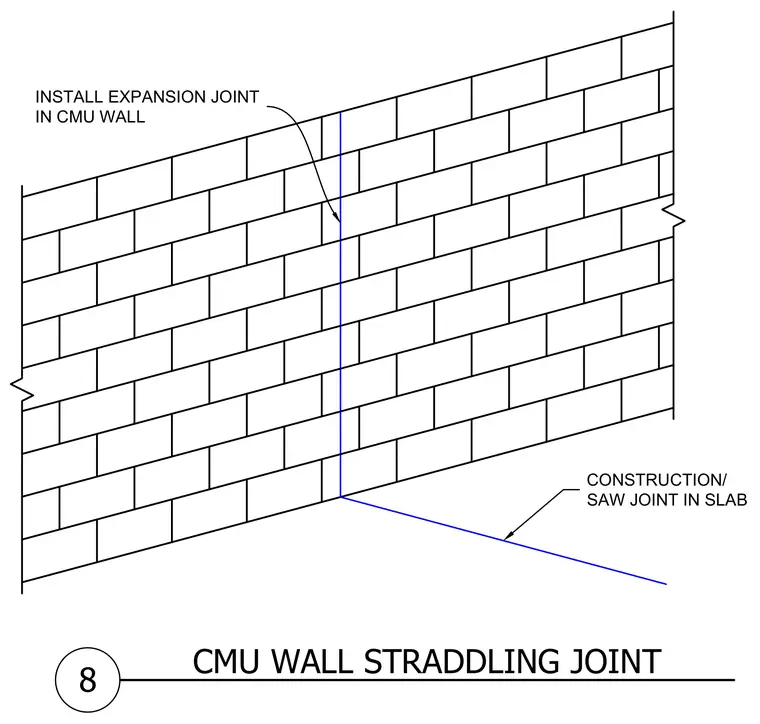

An expansion joint is installed vertically in the concrete masonry unit wall construction. A corresponding construction or saw joint is provided in the adjacent concrete slab directly below the wall joint.
INSTALL EXPANSION JOINT IN CMU WALL CONSTRUCTION/ SAW JOINT IN SLAB CMU WALL STRADDLING JOINT 8
