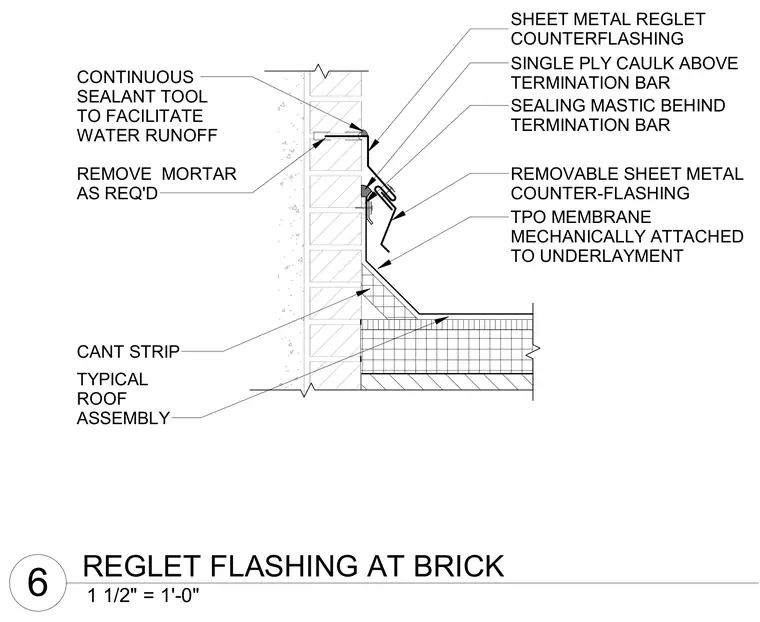

A thermoplastic polyolefin roof membrane extends up the brick wall over a typical cant strip and secures mechanically to the underlayment with a termination bar. Sealing mastic is applied behind the termination bar and single-ply caulk seals above it. Mortar is removed from the brick joint as required to receive a sheet metal reglet counterflashing. A removable sheet metal counterflashing overlaps the membrane termination, and continuous sealant is tooled into the reglet joint to facilitate water runoff.
SINGLE PLY CAULK ABOVE TERMINATION BAR TPO MEMBRANE MECHANICALLY ATTACHED TO UNDERLAYMENT CANT STRIP TYPICAL ROOF ASSEMBLY REMOVE MORTAR AS REQ'D REMOVABLE SHEET METAL COUNTER-FLASHING SHEET METAL REGLET COUNTERFLASHING CONTINUOUS SEALANT TOOL TO FACILITATE WATER RUNOFF SEALING MASTIC BEHIND TERMINATION BAR 1 1/2" = 1'-0" 6 REGLET FLASHING AT BRICK
