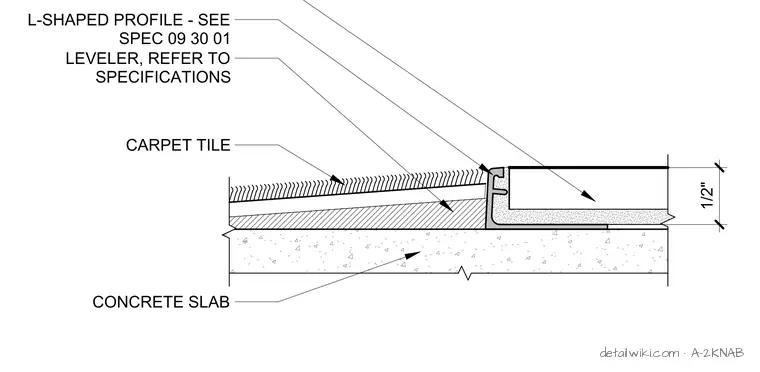

This transition assembly manages the elevation change between carpet tile and adjacent tile flooring installed over a concrete slab. An L-shaped profile serves as the edge trim, with its vertical leg providing a finished edge for the tile and its horizontal flange anchored to the slab. A leveling compound is applied beneath the carpet tile to create a smooth transition slope up to the edge of the L-shaped profile. The specific profile type is referenced to specification section 09 30 01, and the leveling material is installed per project specifications.
