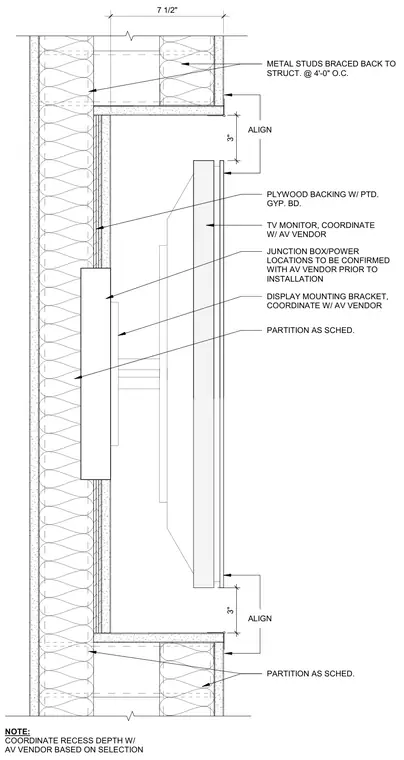

This interior partition detail shows a recessed display mounting setup within a cold-formed steel stud wall. The assembly features plywood backing finished with painted gypsum board to receive a display mounting bracket and television monitor. Metal studs are braced back to the structure at four feet on center. Junction box and power locations require field coordination with the audiovisual vendor prior to installation.
JUNCTION BOX/POWER LOCATIONS TO BE CONFIRMED WITH AV VENDOR PRIOR TO INSTALLATION PLYWOOD BACKING W/ PTD. GYP. BD. ALIGN 3" TV MONITOR, COORDINATE W/ AV VENDOR ALIGN NOTE: COORDINATE RECESS DEPTH W/ AV VENDOR BASED ON SELECTION 3" DISPLAY MOUNTING BRACKET, COORDINATE W/ AV VENDOR METAL STUDS BRACED BACK TO STRUCT. @ 4'-0" O.C. PARTITION AS SCHED. PARTITION AS SCHED. 7 1/2"
