Exterior Area for Assisted Rescue Signage Detail

About this detail

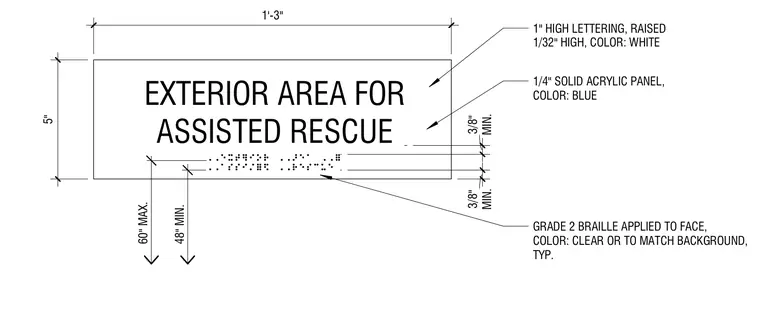

The sign consists of a one-quarter-inch solid acrylic panel in blue measuring fifteen inches wide by five inches high. It features one-inch high white lettering raised one-thirty-second of an inch. Grade 2 braille is applied to the face in clear or to match the background, positioned with minimum three-eighths-inch spacing from text and edges. Overall installation height ranges from forty-eight inches minimum to sixty inches maximum above finished grade.
