This interior partition wall assembly consists of 3 5/8-inch metal stud framing spaced according to structural drawings, filled with sound attenuation batt insulation. The wall is faced on one side with 5/8-inch gypsum wall board, with wall finishes determined by the interior elevation and finish schedule.

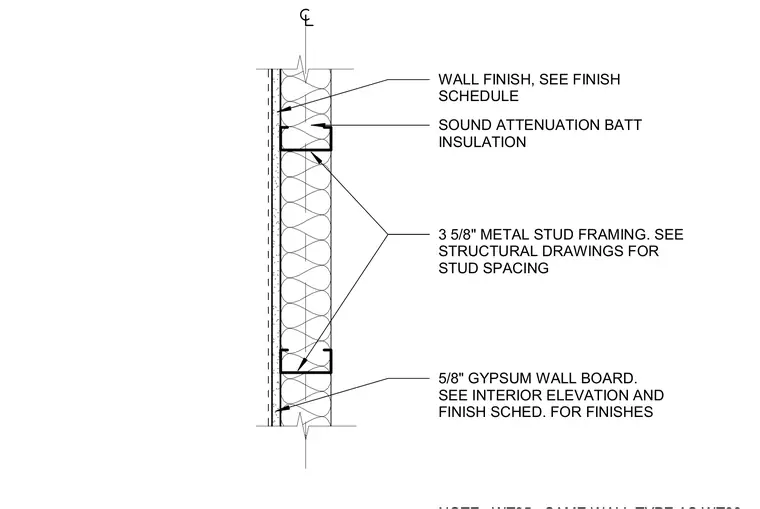

3 5/8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE 5/8" GYPSUM WALL BOARD. SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES
