Accessible parking space signage consists of twelve-gauge galvanized hot-rolled sheet steel panels with a minimum area of seventy square inches, featuring a blue background, white reflectorized international symbol of accessibility, white lettering, and a white border. Additional text plaques include van accessible designations and minimum fine warnings. Signs are mounted on two-inch by two-inch galvanized steel tube posts or directly to walls, positioned with the bottom of the sign at a minimum of sixty inches above the floor of the parking stall.

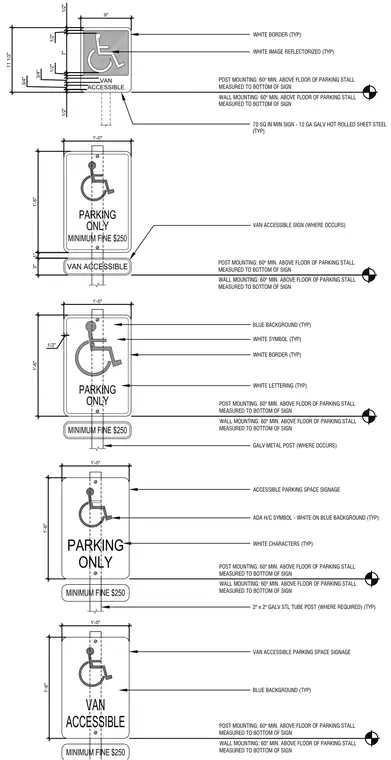

1'-6" ACCESSIBLE VAN BLUE BACKGROUND (TYP) WHITE CHARACTERS (TYP) 1'-0" VAN ACCESSIBLE PARKING SPACE SIGNAGE 1'-6" ONLY 1'-0" PARKING 2" x 2" GALV STL TUBE POST (WHERE REQUIRED) (TYP) ADA H/C SYMBOL - WHITE ON BLUE BACKGROUND (TYP) ACCESSIBLE PARKING SPACE SIGNAGE 1'-6" 1/2" 1'-0" BLUE BACKGROUND (TYP) WHITE LETTERING (TYP) WHITE SYMBOL (TYP) WHITE BORDER (TYP) VAN ACCESSIBLE 1'-0" 1'-6" VAN ACCESSIBLE SIGN (WHERE OCCURS) GALV METAL POST (WHERE OCCURS) ONLY PARKING 3" 1" MINIMUM FINE $250 PARKING ONLY VAN 3/4" 3/4" 1/2" 7" ACCESSIBLE 11 1/2" 1/2" 70 SQ IN MIN SIGN - 12 GA GALV HOT ROLLED SHEET STEEL (TYP) WHITE IMAGE REFLECTORIZED (TYP) 9" 1/2" 1/2" WHITE BORDER (TYP) MINIMUM FINE $250 MINIMUM FINE $250 MINIMUM FINE $250 POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN POST MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN WALL MOUNTING: 60" MIN. ABOVE FLOOR OF PARKING STALL MEASURED TO BOTTOM OF SIGN
