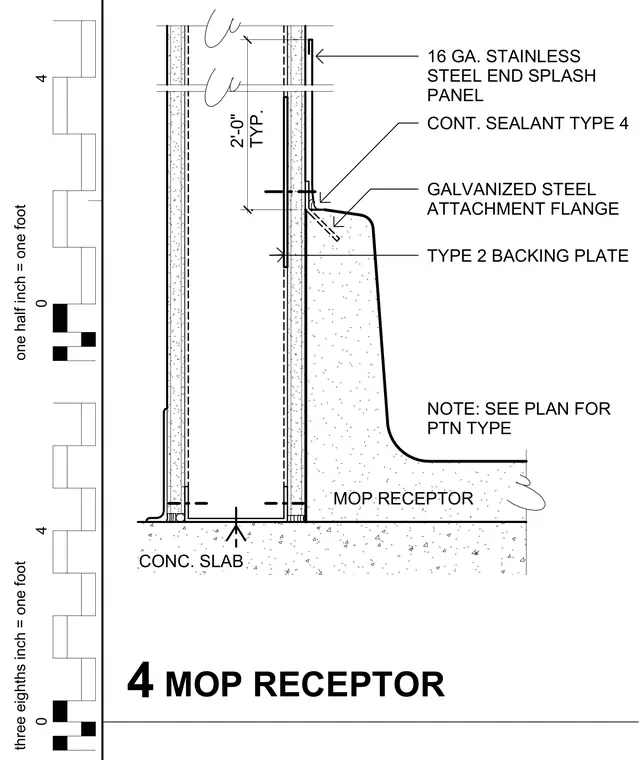

A concrete mop receptor is set against a concrete slab wall. The receptor features a galvanized steel attachment flange secured to a type 2 backing plate within the wall assembly, sealed with continuous type 4 sealant at the interface. A 16-gauge stainless steel end splash panel extends upward along the wall with a typical two-foot height dimension. The partition type is coordinated per the architectural floor plans.
CONC. SLAB MOP RECEPTOR CONT. SEALANT TYPE 4 GALVANIZED STEEL ATTACHMENT FLANGE NOTE: SEE PLAN FOR PTN TYPE TYPE 2 BACKING PLATE 16 GA. STAINLESS STEEL END SPLASH PANEL . 2'-0" TYP. one half inch = one foot 4 0 three eighths inch = one foot 4 0 4 MOP RECEPTOR
