Architectural · A-2KF9X

Enlarged Plan and Wall Junction at Back Exit Stair

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Columns Walls Doors Stairs Floors / Slabs Insulation Millwork / Casework

Connections

HSS Connection

About this detail

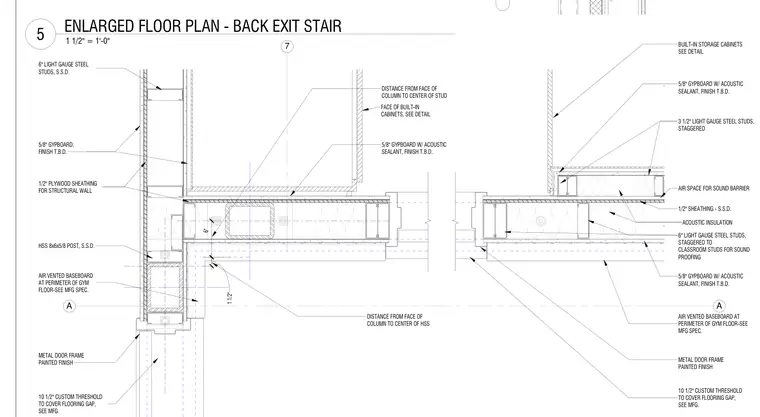

This enlarged floor plan details a wall intersection framed with six-inch and three-and-a-half-inch light gauge steel studs, including staggered studs for acoustic soundproofing between spaces. The assembly incorporates an HSS 8x6x5/8 structural post, half-inch plywood sheathing, and layers of five-eighths-inch gypsum board finished with acoustic sealant. An air space and acoustic insulation provide sound barrier performance between partitions. Air-vented baseboards are detailed along the perimeter of the gym floor per the manufacturer specification. A painted metal door frame is integrated alongside a ten-and-a-half-inch custom threshold designed to cover flooring gaps.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
