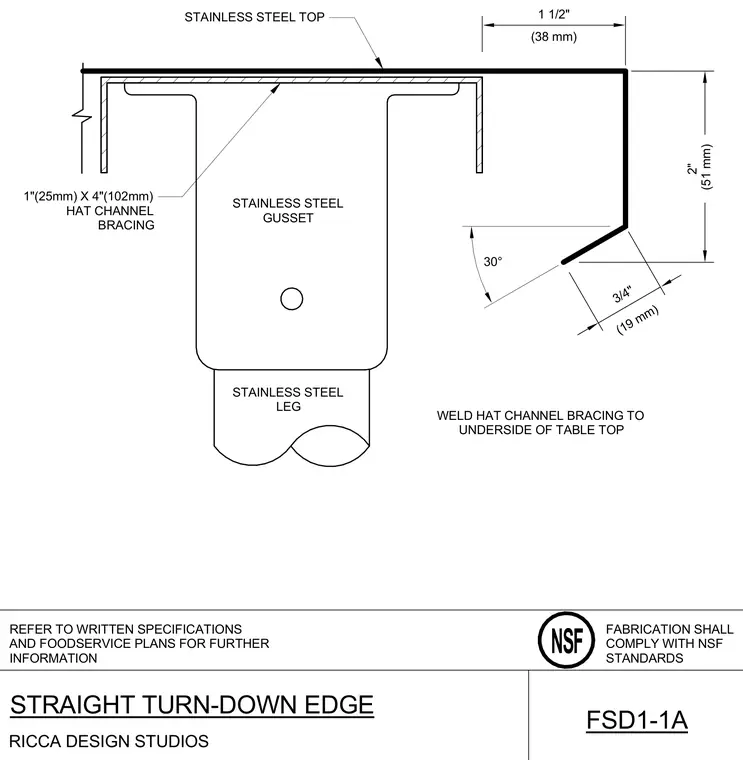

A stainless steel top is stiffened on its underside with one-inch by four-inch hat channel bracing welded directly to the table top. A stainless steel gusset and leg assembly connects beneath the top to support the structure. The outer edge features a straight turn-down edge extending two inches vertically with a thirty-degree angled return flange. Fabrication complies with NSF standards per foodservice specifications.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF 1 1/2" (38 mm) 2" (51 mm) 3/4" (19 mm) STAINLESS STEEL GUSSET STAINLESS STEEL LEG WELD HAT CHANNEL BRACING TO UNDERSIDE OF TABLE TOP STAINLESS STEEL TOP 1"(25mm) X 4"(102mm) HAT CHANNEL BRACING STRAIGHT TURN-DOWN EDGE FSD1-1A 30°
