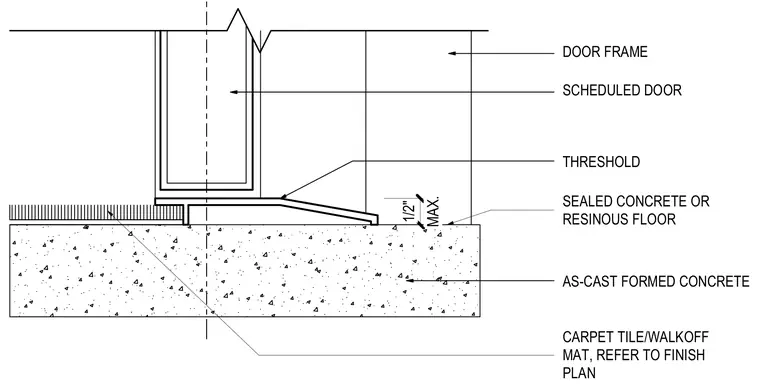

An as-cast formed concrete slab supports a scheduled door frame and door with an integrated threshold. The threshold transitions to a maximum half-inch height above a sealed concrete or resinous floor on one side. The opposite side abuts carpet tile or a walk-off mat as specified on the finish plan.
AS-CAST FORMED CONCRETE THRESHOLD MAX. 1/2" DOOR FRAME SCHEDULED DOOR SEALED CONCRETE OR RESINOUS FLOOR CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN
