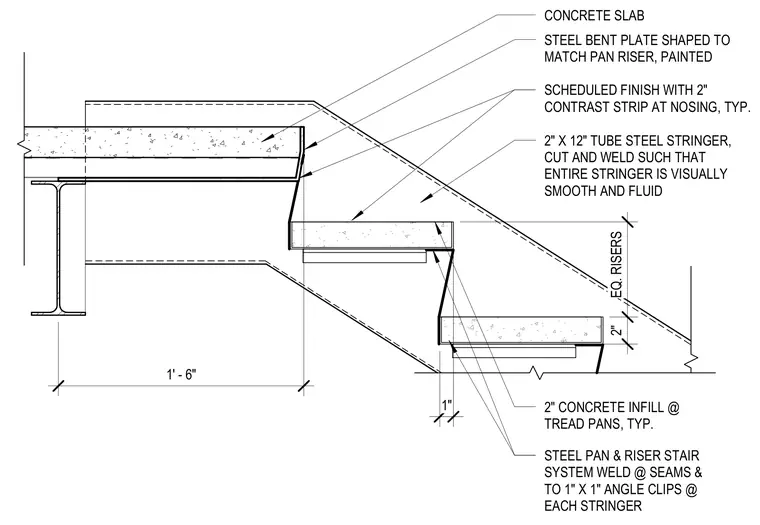

A two-by-twelve-inch tube steel stringer frames into the concrete slab and supports a welded steel pan and riser stair system. The steel pan system features two inches of concrete infill at the treads with a scheduled finish and a two-inch contrast strip at the nosing. A one-by-one-inch angle clip connects each stringer to the stair assembly with welds at seams and clips. A painted steel bent plate is shaped to match the pan riser at the landing transition.
2" X 12" TUBE STEEL STRINGER, CUT AND WELD SUCH THAT ENTIRE STRINGER IS VISUALLY SMOOTH AND FLUID 2" CONCRETE INFILL @ TREAD PANS, TYP. SCHEDULED FINISH WITH 2" CONTRAST STRIP AT NOSING, TYP. STEEL PAN & RISER STAIR SYSTEM WELD @ SEAMS & TO 1" X 1" ANGLE CLIPS @ EACH STRINGER EQ. RISERS 2" 1" STEEL BENT PLATE SHAPED TO MATCH PAN RISER, PAINTED CONCRETE SLAB 1' - 6"
