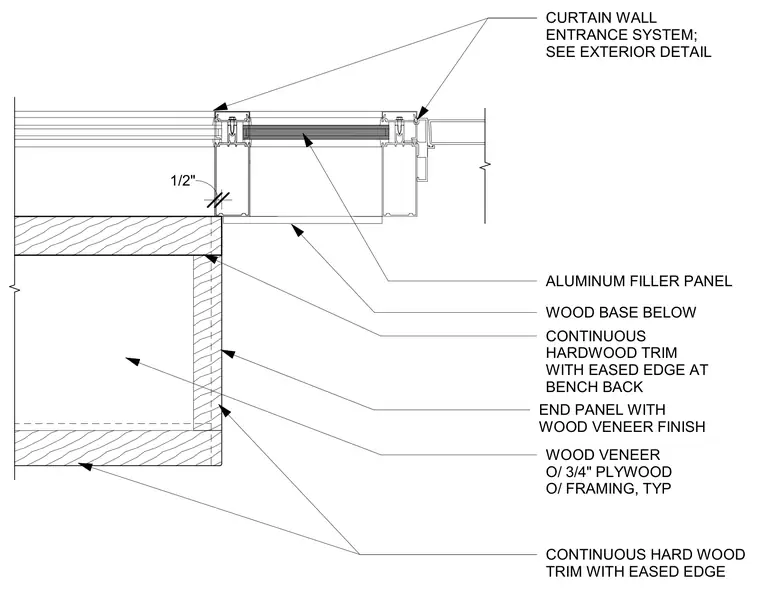

An interior bench assembly integrates with an aluminum curtain wall entrance system. The bench features a one-half inch continuous hardwood trim with an eased edge, mounted over wood veneer and three-quarter inch plywood over framing. A matching end panel with a wood veneer finish completes the bench back, located beneath an aluminum filler panel and the adjacent curtain wall frame.
1/2" CONTINUOUS HARD WOOD TRIM WITH EASED EDGE WOOD VENEER O/ 3/4" PLYWOOD O/ FRAMING, TYP CURTAIN WALL ENTRANCE SYSTEM; SEE EXTERIOR DETAIL CONTINUOUS HARDWOOD TRIM WITH EASED EDGE AT BENCH BACK ALUMINUM FILLER PANEL WOOD BASE BELOW END PANEL WITH WOOD VENEER FINISH
