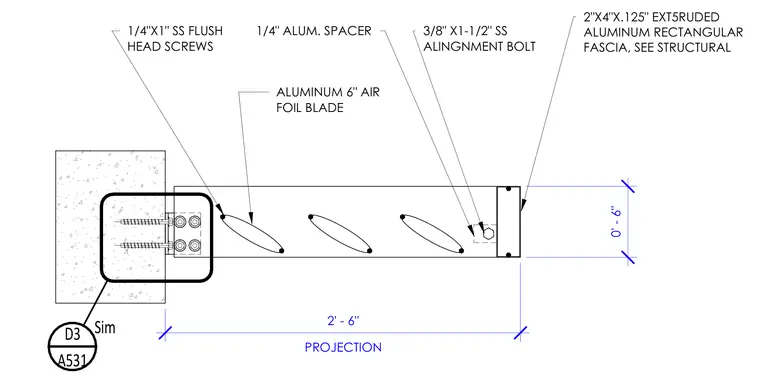

An extruded aluminum rectangular fascia measuring two inches by four inches by one-eighth inch thick caps the end of the sunshade assembly, secured with three-eighths-inch by one-and-one-half-inch stainless steel alignment bolts and one-quarter-inch aluminum spacers. Six-inch aluminum airfoil blades are fastened between framing members using one-quarter-inch by one-inch stainless steel flush head screws. The entire sunshade projects two feet six inches from the supporting concrete or structural element, with a total height of six inches.
PROJECTION 2' - 6" 0' - 6" 1/4"X1" SS FLUSH HEAD SCREWS ALUMINUM 6" AIR FOIL BLADE 3/8" X1-1/2" SS ALINGNMENT BOLT 1/4" ALUM. SPACER 2"X4"X.125" EXT5RUDED ALUMINUM RECTANGULAR FASCIA, SEE STRUCTURAL A531 D3 Sim
