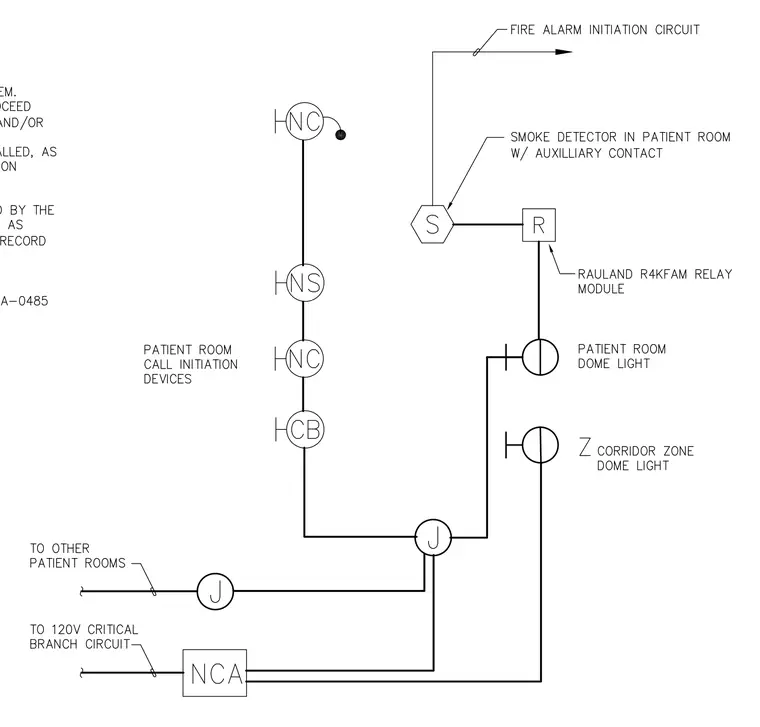

This electrical schematic details the patient room call initiation devices wired in a circuit interfacing with a smoke detector containing an auxiliary contact, a Rauland R4KFAM relay module, patient room dome lights, and a corridor zone dome light. The fire alarm initiation circuit ties into the system while connections extend to other patient rooms and a one hundred twenty volt critical branch circuit through junction boxes and relay modules.
