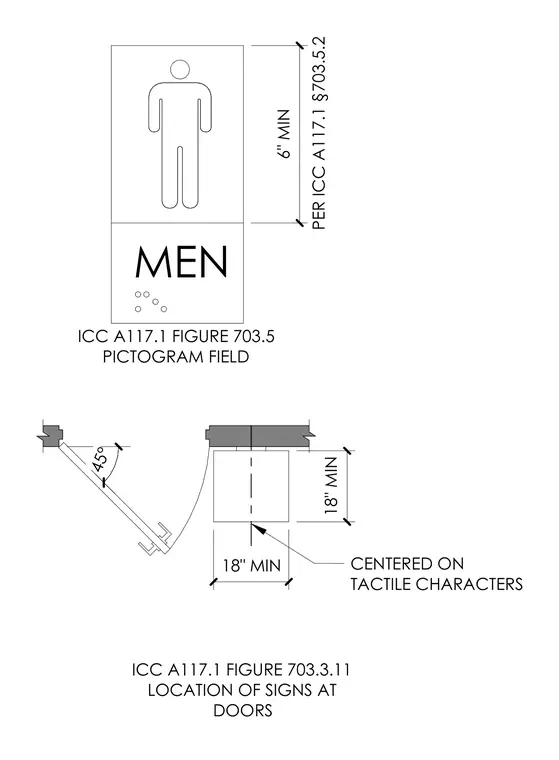

Restroom signage mounting and placement details comply with ICC A117.1 standards for accessibility. The pictogram field requires a minimum height of six inches with centered tactile characters and braille. Sign placement adjacent to the latch side of the door requires a minimum eighteen-inch clearance centered on the tactile characters.
45° 18" MIN 18" MIN CENTERED ON TACTILE CHARACTERS PER ICC A117.1 §703.5.2 6" MIN MEN ICC A117.1 FIGURE 703.5 PICTOGRAM FIELD ICC A117.1 FIGURE 703.3.11 LOCATION OF SIGNS AT DOORS
