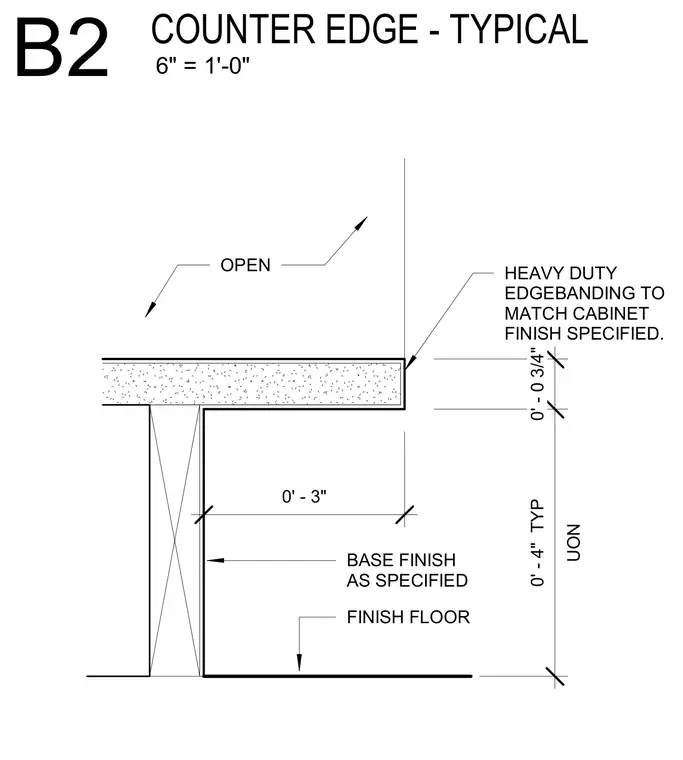

An open cabinet counter edge features heavy duty edgebanding matching the specified cabinet finish. The counter overhangs an open space with a typical four-inch dimension unless otherwise noted. The base finish is applied as specified above the finish floor.
FINISH FLOOR BASE FINISH AS SPECIFIED 0' - 3" OPEN UON 0' - 4" TYP 0' - 0 3/4" HEAVY DUTY EDGEBANDING TO MATCH CABINET FINISH SPECIFIED. 6" = 1'-0" B2 COUNTER EDGE - TYPICAL
