An expansion joint cover assembly is mounted to interior partition stud framing with gypsum wallboard infill matching the adjacent wall finish. The connection spans across the wall-to-wall joint condition between structural supports.

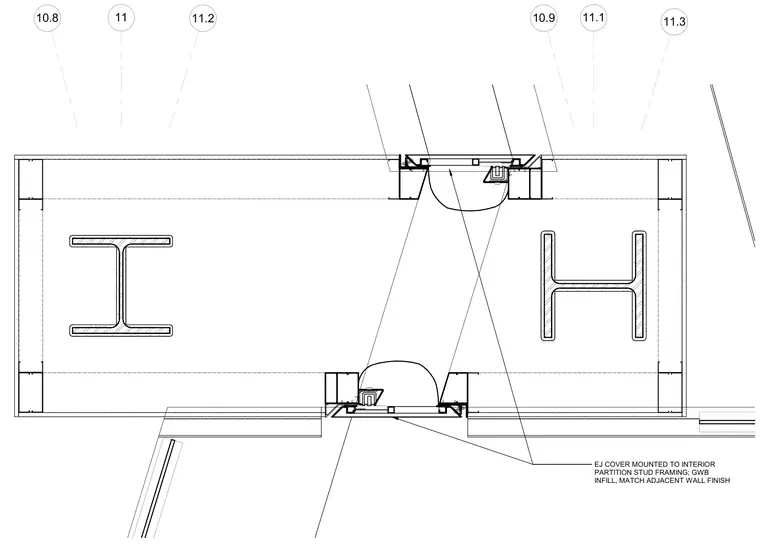

11 11.1 11.2 11.3 EJ COVER MOUNTED TO INTERIOR PARTITION STUD FRAMING; GWB INFILL, MATCH ADJACENT WALL FINISH 10.8 10.9
