Architectural · A-2JG39

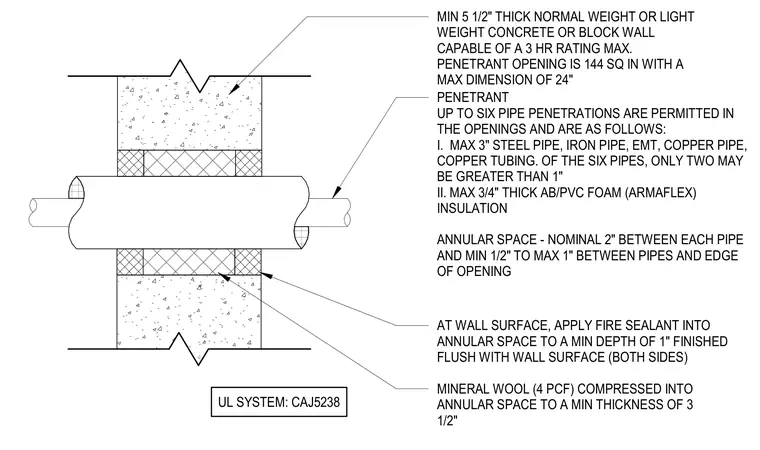

Pipe Penetration Firestop Detail in Concrete Wall

Materials

Elements

About this detail

A minimum five and one-half inch thick normal weight or lightweight concrete or block wall accommodates penetrant openings up to one hundred forty-four square inches with a maximum dimension of twenty-four inches. Up to six pipe penetrations are permitted within the opening, including steel pipe, iron pipe, electrical metallic tubing, copper pipe, copper tubing, or closed-cell foam insulation, with specific size limits per pipe. Mineral wool packed at four pounds per cubic foot is compressed into the annular space to a minimum thickness of three and one-half inches. Fire sealant is applied into the annular space at the wall surface to a minimum depth of one inch, finished flush with the wall surface on both sides.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
