Architectural · A-2JF2E

Non-Rated Partition Head to Metal Deck Connection

Materials

Concrete Timber / Wood

Elements

Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

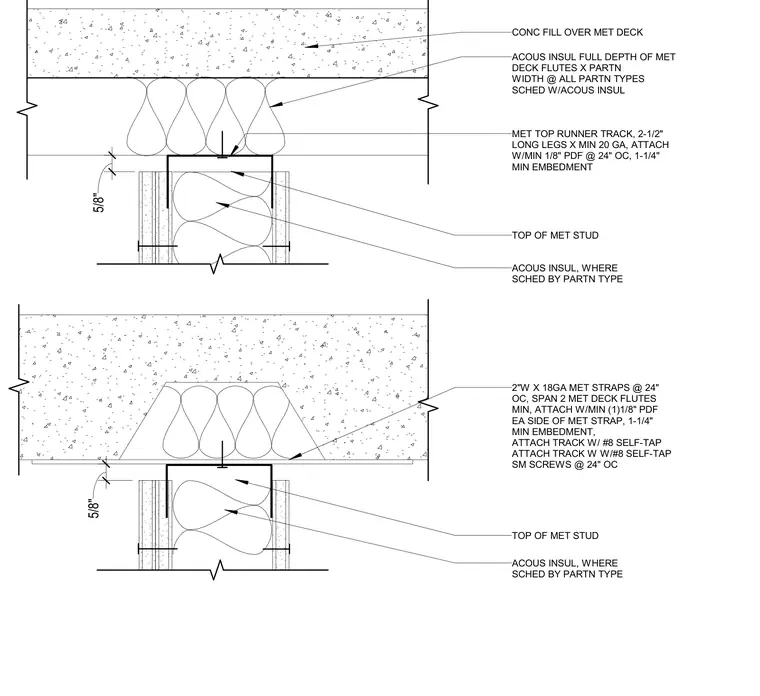

A non-rated metal stud partition intersects a concrete-filled metal deck at the head. Acoustic insulation fills the full depth of the metal deck flutes across the partition width where scheduled. The metal top runner track features two-and-a-half-inch long legs formed from minimum twenty-gauge steel, attached with minimum one-eighth-inch powder-driven fasteners at twenty-four inches on center with a one-and-a-quarter-inch minimum embedment. Where scheduled by partition type, two-inch wide by eighteen-gauge metal straps span a minimum of two metal deck flutes at twenty-four inches on center, secured with one-eighth-inch powder-driven fasteners on each side and one-and-a-quarter-inch minimum embedment. The runner track is fastened with number eight self-tapping sheet metal screws at twenty-four inches on center.
