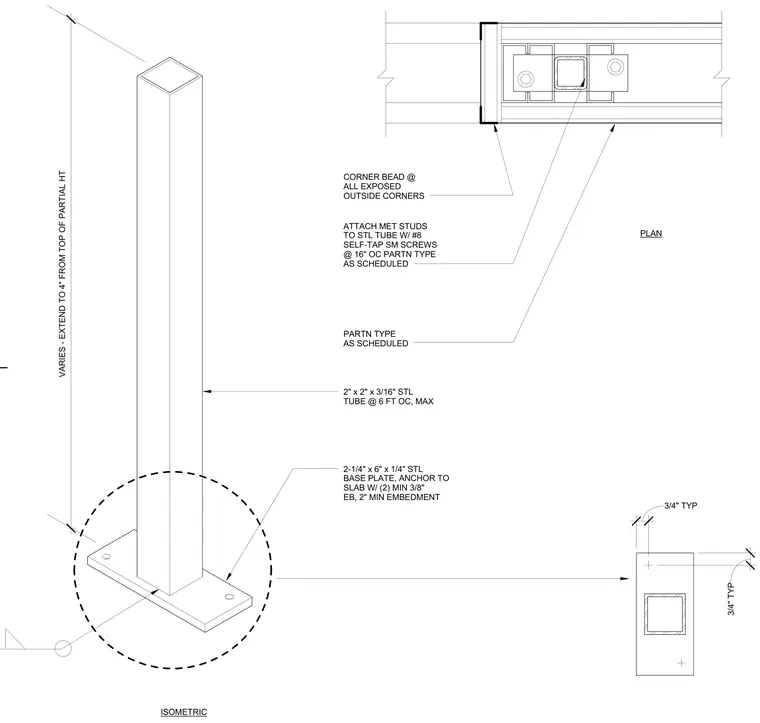

A structural steel tube measuring two inches by two inches by three-sixteenths of an inch serves as the vertical support post at six feet on center maximum. A steel base plate measuring two and one-quarter inches by six inches by one-quarter of an inch welds to the bottom of the tube and anchors to the concrete slab using two expansion bolts with a minimum three-eighths inch diameter and two-inch minimum embedment. Metal studs attach to the steel tube using number eight self-tapping sheet metal screws at sixteen inches on center. Corner beads finish all exposed outside corners of the partition assembly.
CORNER BEAD @ ALL EXPOSED OUTSIDE CORNERS ATTACH MET STUDS TO STL TUBE W/ #8 SELF-TAP SM SCREWS @ 16" OC PARTN TYPE AS SCHEDULED PARTN TYPE AS SCHEDULED PLAN ISOMETRIC 2" x 2" x 3/16" STL TUBE @ 6 FT OC, MAX 2-1/4" x 6" x 1/4" STL BASE PLATE, ANCHOR TO SLAB W/ (2) MIN 3/8" EB, 2" MIN EMBEDMENT 3/4" TYP 3/4" TYP . VARIES - EXTEND TO 4" FROM TOP OF PARTIAL HT
