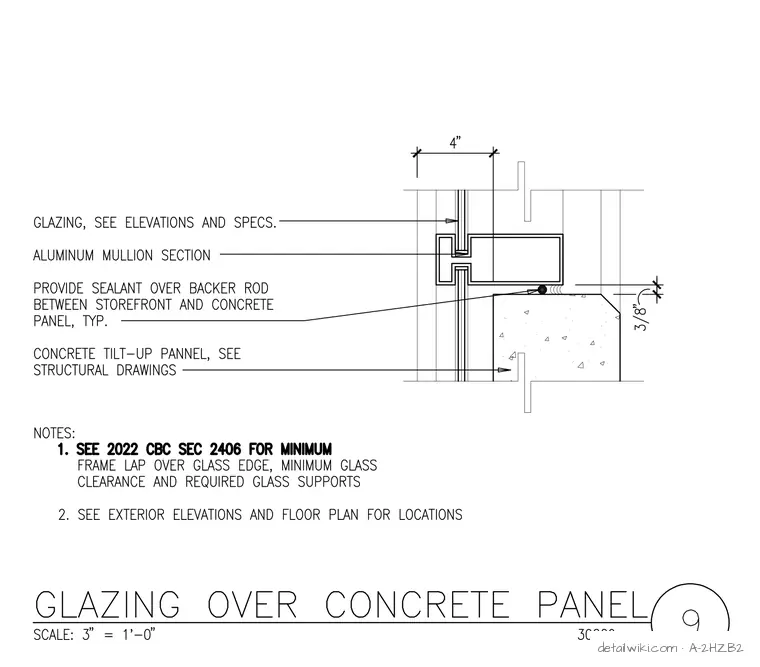

An aluminum mullion section interfaces with a concrete tilt-up panel, maintaining a typical three-eighths-inch joint sealed with sealant over a backer rod. Glazing is installed per elevations and specifications, positioned with a four-inch dimension to the frame edge. The concrete panel details refer to the structural drawings for reinforcement and thickness requirements. General notes reference California Building Code section 2406 for minimum frame lap over glass edge, glass clearance, and glass supports.
