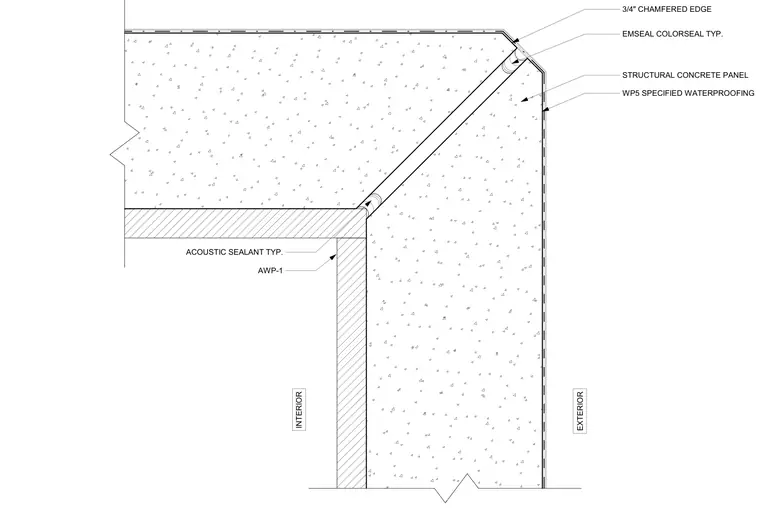

Two structural concrete panels meet at a mitered exterior corner with a three-quarter-inch chamfered edge. The exterior joint is sealed with an Emseal Colorseal impregnated foam sealant, backed by a specified waterproofing layer designated as WP5. The interior side of the joint incorporates acoustic sealant and an architectural wall panel designation AWP-1.
3/4" CHAMFERED EDGE STRUCTURAL CONCRETE PANEL EMSEAL COLORSEAL TYP. INTERIOR EXTERIOR WP5 SPECIFIED WATERPROOFING ACOUSTIC SEALANT TYP. AWP-1
