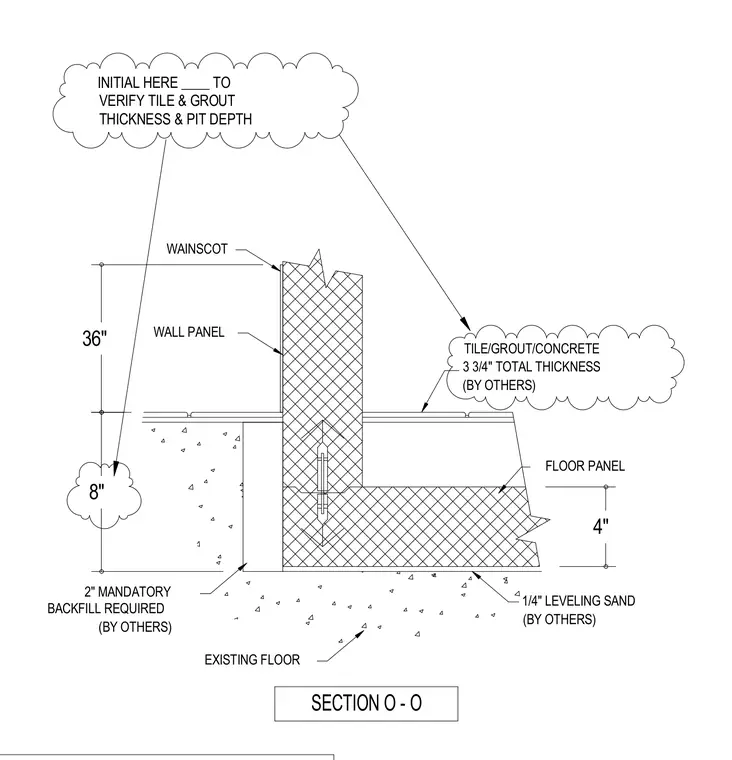

A wall panel and floor panel assembly rests on an existing floor with a mandatory 2-inch backfill by others. The floor panel features a 4-inch thickness set over a 1/4-inch leveling sand layer, topped with a 3 3/4-inch total thickness of tile, grout, and concrete by others. A wainscot extends 36 inches up the face of the vertical wall panel. The overall depth from the finished floor to the subfloor includes an 8-inch vertical dimension zone requiring verification of tile and grout thickness and pit depth.
SECTION O - O 8" 4" 36" EXISTING FLOOR WALL PANEL FLOOR PANEL WAINSCOT 2" MANDATORY BACKFILL REQUIRED (BY OTHERS) TILE/GROUT/CONCRETE 3 3/4" TOTAL THICKNESS (BY OTHERS) INITIAL HERE ____ TO VERIFY TILE & GROUT THICKNESS & PIT DEPTH 1/4" LEVELING SAND (BY OTHERS)
