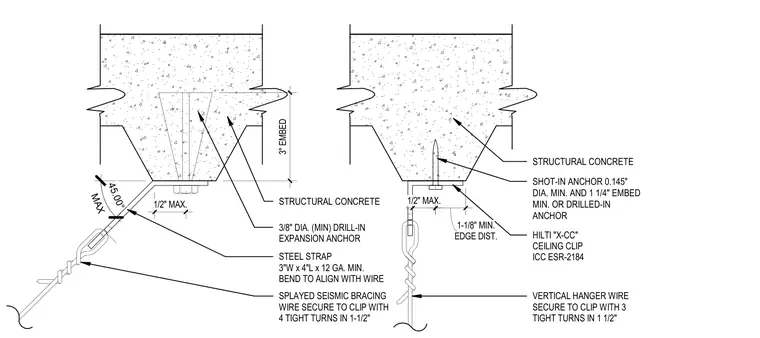

Anchorage of suspended ceiling wires and seismic bracing to overhead structural concrete. A splayed seismic bracing wire connects via a three-inch wide by four-inch long twelve-gauge steel strap bent to align with the wire, secured with four tight turns in a ceiling clip and anchored to the concrete using a three-eighths-inch diameter drill-in expansion anchor with a three-inch embedment. A vertical hanger wire is secured with three tight turns in a ceiling clip, anchored to the concrete using either a zero-point-one-four-five-inch diameter shot-in anchor with a one-and-one-quarter-inch minimum embedment or a drilled-in anchor maintaining a one-and-one-eighth-inch minimum edge distance.
3/8" DIA. (MIN) DRILL-IN EXPANSION ANCHOR STEEL STRAP 3"W x 4"L x 12 GA. MIN. BEND TO ALIGN WITH WIRE SPLAYED SEISMIC BRACING WIRE SECURE TO CLIP WITH 4 TIGHT TURNS IN 1-1/2" HILTI "X-CC" CEILING CLIP ICC ESR-2184 VERTICAL HANGER WIRE SECURE TO CLIP WITH 3 TIGHT TURNS IN 1 1/2" 1/2" MAX. MAX 45.00° STRUCTURAL CONCRETE SHOT-IN ANCHOR 0.145" DIA. MIN. AND 1 1/4" EMBED MIN. OR DRILLED-IN ANCHOR STRUCTURAL CONCRETE 1/2" MAX. 3" EMBED EDGE DIST. 1-1/8" MIN.
