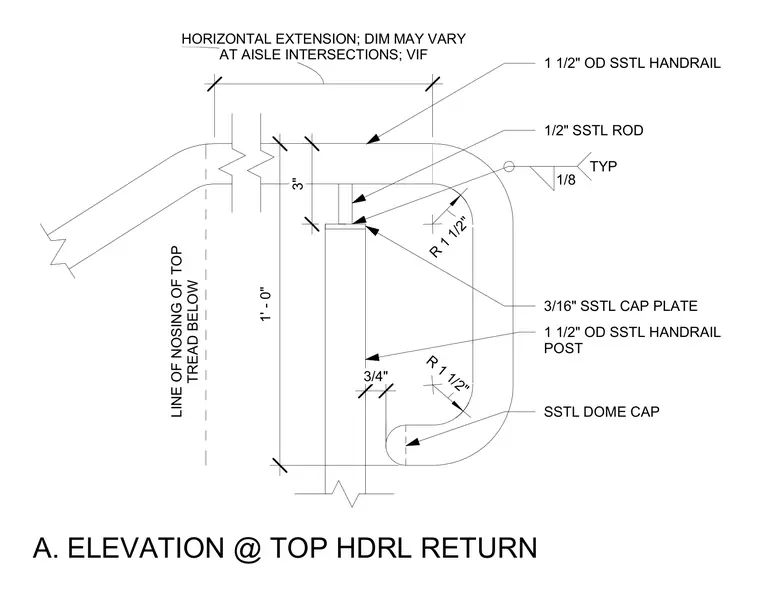

The assembly features a one and one-half inch outside diameter stainless steel handrail terminating in a returned curve with a stainless steel dome cap. A one-half inch stainless steel rod connects the handrail to a three-sixteenths inch stainless steel cap plate atop a one and one-half inch outside diameter stainless steel handrail post. The horizontal extension dimension may vary at aisle intersections and is verified in the field. A one-eighth inch fillet weld is typically applied.
AT AISLE INTERSECTIONS; VIF HORIZONTAL EXTENSION; DIM MAY VARY 3" 1' - 0" 1 1/2" OD SSTL HANDRAIL 1/2" SSTL ROD 3/16" SSTL CAP PLATE 1 1/2" OD SSTL HANDRAIL POST SSTL DOME CAP 3/4" R 1 1/2" R 1 1/2" LINE OF NOSING OF TOP TREAD BELOW 1/8 TYP A. ELEVATION @ TOP HDRL RETURN
