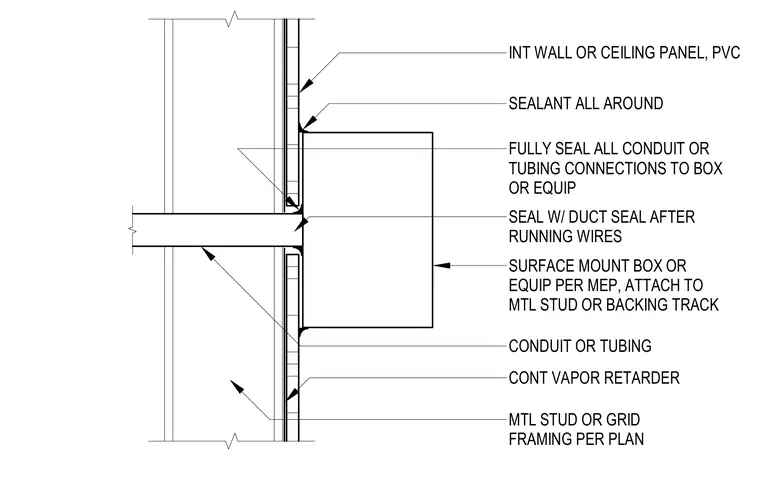

A PVC surface mount box or equipment is attached to metal studs or backing track behind an interior wall or ceiling panel. A continuous vapor retarder runs behind the panel framing. All conduit or tubing connections to the box or equipment are fully sealed, and duct seal is applied after running wires. Sealant is applied all around the perimeter of the box where it meets the panel.
INT WALL OR CEILING PANEL, PVC SURFACE MOUNT BOX OR EQUIP PER MEP, ATTACH TO MTL STUD OR BACKING TRACK CONT VAPOR RETARDER MTL STUD OR GRID FRAMING PER PLAN FULLY SEAL ALL CONDUIT OR TUBING CONNECTIONS TO BOX OR EQUIP CONDUIT OR TUBING SEALANT ALL AROUND SEAL W/ DUCT SEAL AFTER RUNNING WIRES
