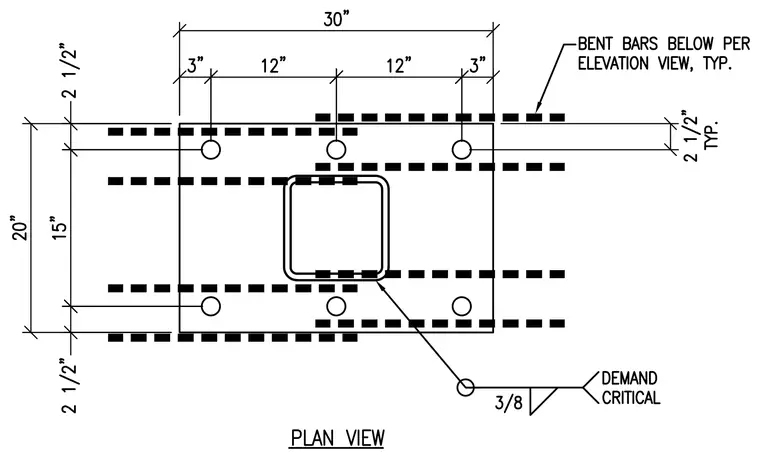

A square hollow structural section column sits centered on a rectangular base plate measuring thirty inches by twenty inches. Six anchor bolts are arranged around the column with dimensions of three inches, twelve inches, and twelve inches horizontally, and fifteen inches vertically with two and one-half inch edge clearances. Bent reinforcing bars run horizontally across the assembly per the elevation view. A weld symbol specifies a three-eighths inch fillet weld designated as demand critical around the column connection.
