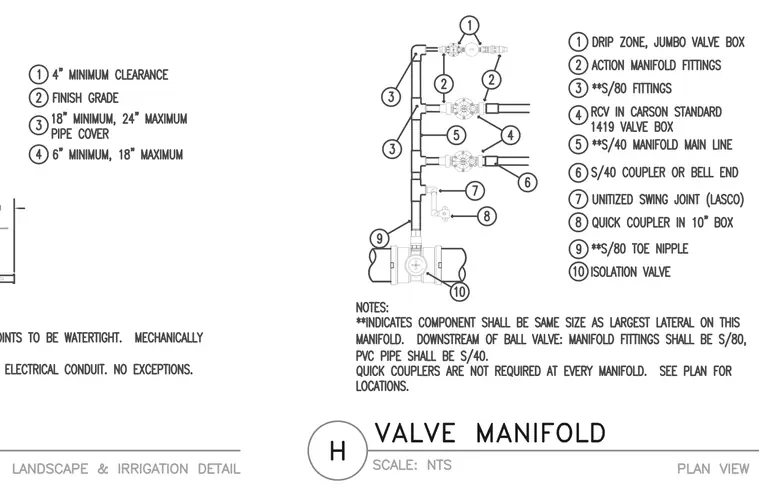

Irrigation valve manifold assembly featuring schedule 80 fittings and schedule 40 manifold main lines connected to remote control valves in valve boxes. The assembly incorporates action manifold fittings, unitized swing joints, and quick couplers housed within designated valve boxes. An isolation valve connects to a schedule 80 toe nipple at the main supply line. Downstream of the ball valve, manifold fittings are schedule 80 and PVC pipe is schedule 40, with components sized to match the largest lateral on the manifold.
