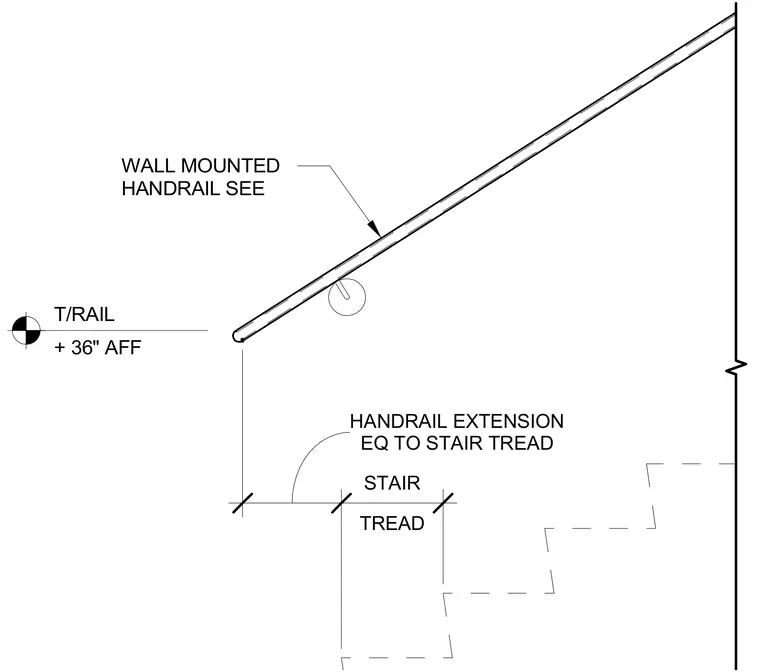

A wall-mounted handrail terminates with a standard extension set equal to the stair tread dimension. The top of the rail is positioned at thirty-six inches above the finished floor.
TREAD STAIR EQ TO STAIR TREAD HANDRAIL EXTENSION WALL MOUNTED HANDRAIL SEE T/RAIL + 36" AFF
