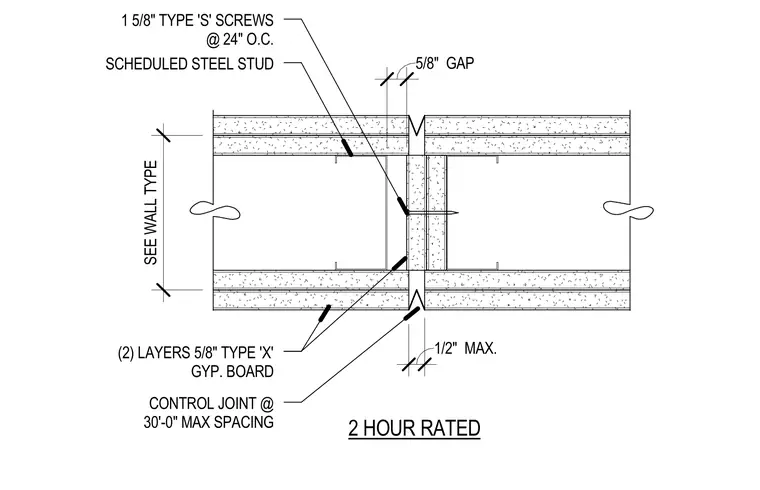

Two layers of five-eighths-inch type X gypsum board attach to scheduled steel studs using one-and-five-eighths-inch type S screws spaced at twenty-four inches on center. The wall assembly features a control joint spaced at a maximum of thirty feet, maintaining a five-eighths-inch gap with a one-half-inch maximum joint dimension. The configuration is rated for two-hour fire resistance.
1/2" MAX. 5/8" GAP SEE WALL TYPE 1 5/8" TYPE 'S' SCREWS @ 24" O.C. SCHEDULED STEEL STUD (2) LAYERS 5/8" TYPE 'X' GYP. BOARD CONTROL JOINT @ 30'-0" MAX SPACING 2 HOUR RATED
