A-2GEPM — Epoxy Terrazzo Flooring Transition at Concession Boundary

Architectural · A-2GEPM

Epoxy Terrazzo Flooring Transition at Concession Boundary

Materials

Elements

About this detail

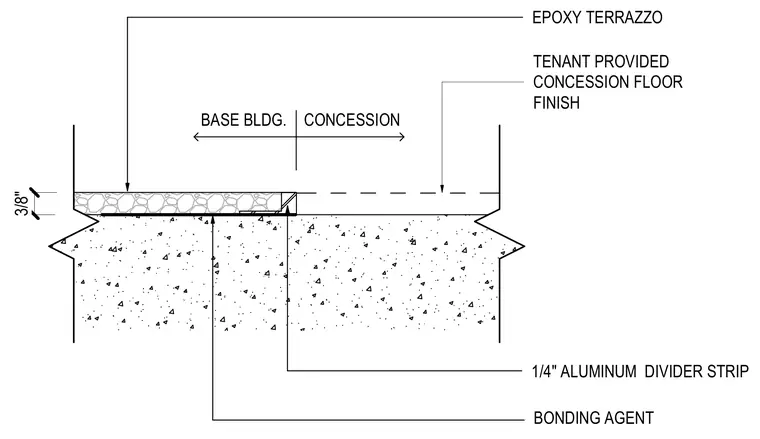

An epoxy terrazzo flooring assembly connects to a tenant-provided concession floor finish over a concrete substrate. A bonding agent is applied beneath the three-eighths-inch thick epoxy terrazzo system. A one-quarter-inch aluminum divider strip separates the base building finish from the concession area.

CONCESSION BASE BLDG. EPOXY TERRAZZO TENANT PROVIDED CONCESSION FLOOR FINISH BONDING AGENT 1/4" ALUMINUM DIVIDER STRIP 3/8"
