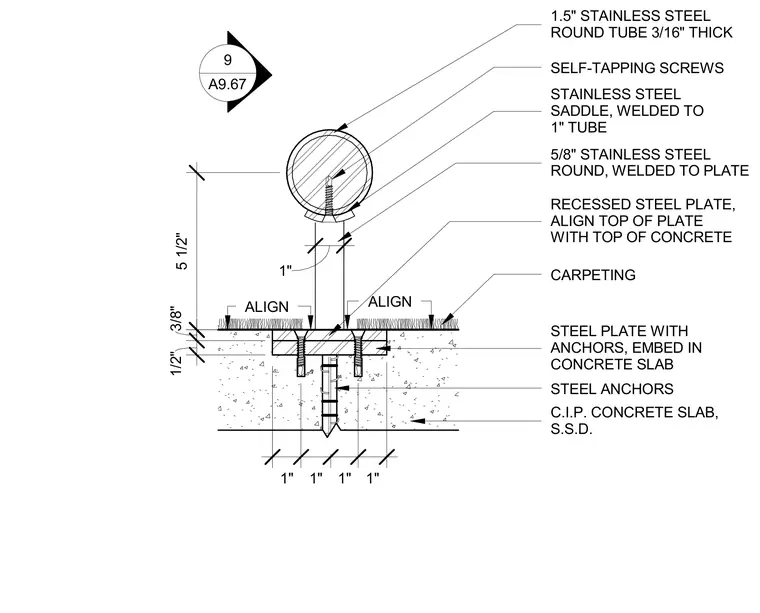

A 1.5-inch diameter stainless steel round tube with a 3/16-inch thickness is secured to a matching stainless steel saddle by self-tapping screws. The saddle is welded to the top of a 5/8-inch stainless steel round vertical support, which is welded below to a recessed steel plate. This steel plate features welded anchors and is cast flush into a cast-in-place concrete slab finished with carpeting. Steel anchors fasten the embedded plate assembly into the concrete substrate.
1" 1" 1" 1" 3/8" 1/2" 5 1/2" 1" ALIGN ALIGN 1.5" STAINLESS STEEL ROUND TUBE 3/16" THICK SELF-TAPPING SCREWS STAINLESS STEEL SADDLE, WELDED TO 1" TUBE 5/8" STAINLESS STEEL ROUND, WELDED TO PLATE C.I.P. CONCRETE SLAB, S.S.D. CARPETING STEEL ANCHORS STEEL PLATE WITH ANCHORS, EMBED IN CONCRETE SLAB RECESSED STEEL PLATE, ALIGN TOP OF PLATE WITH TOP OF CONCRETE 9 A9.67
