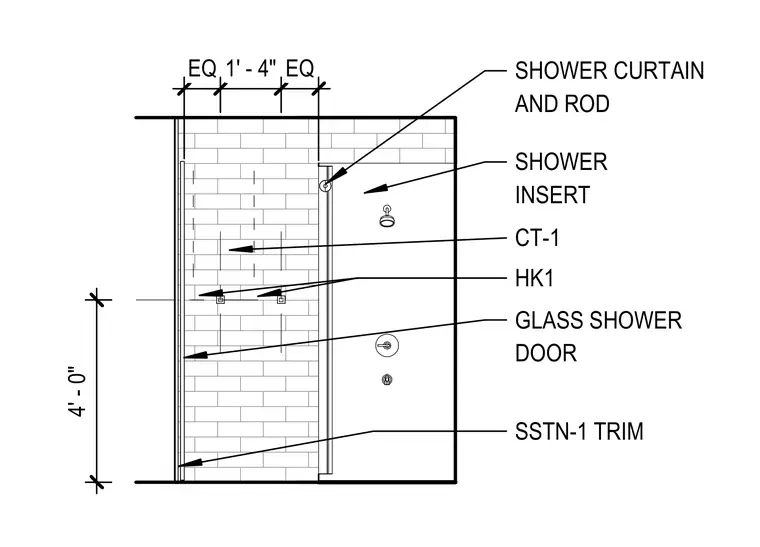

A shower enclosure assembly features a glass shower door paired with a shower curtain and rod. The surround is finished with ceramic tile designated as CT-1 and stainless steel trim designated as SSTN-1. Hooks or hardware designated as HK1 are mounted on the tiled wall surface.
SHOWER INSERT CT-1 GLASS SHOWER DOOR SHOWER CURTAIN AND ROD SSTN-1 TRIM 4 ' - 0 " E Q 1 ' - 4 " E Q HK1
