Architectural · A-2FZ9B

Facade Fin Support Plan Detail at Parapet Corner

Materials

Concrete Steel Glass / Glazing Composite

Elements

Columns Beams Walls Curtain Walls Facades / Cladding Parapets Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Welded Connection Deck Attachment

About this detail

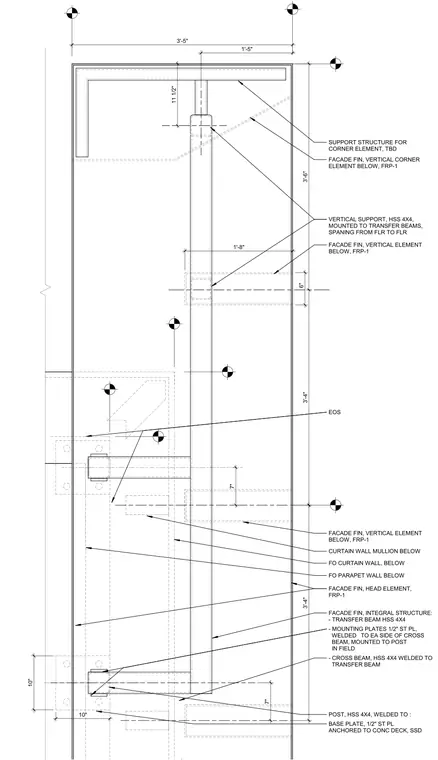

Vertical support posts and transfer beams are constructed from hollow structural section HSS 4x4 members at the southwest corner parapet. Cross beams of HSS 4x4 are welded to the transfer beam posts and feature half-inch steel mounting plates welded to each side for field mounting. The vertical HSS supports span from floor to floor, tying into a half-inch steel base plate anchored to the concrete deck. The FRP-1 facade fins and head elements mount directly to this structural framework adjacent to the curtain wall mullions.
