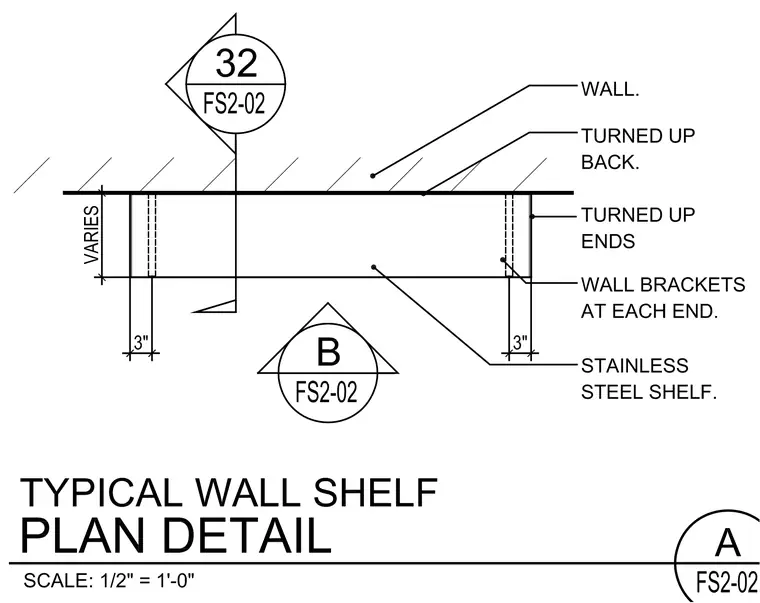

A stainless steel shelf is mounted to the wall using wall brackets located at each end with a three-inch clearance from the ends. The shelf features a turned-up back against the wall and turned-up ends. The depth from the wall to the front of the shelf varies.
