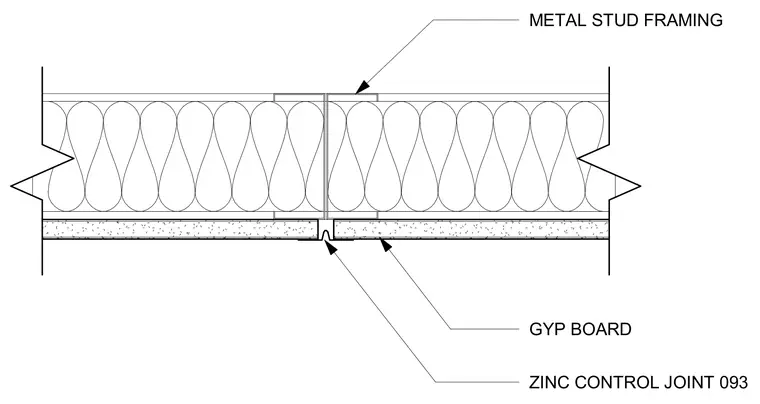

A zinc control joint is installed within the gypsum board surface over metal stud framing to accommodate wall movement and prevent cracking. The drywall panels terminate on each side of the control joint accessory. The underlying metal stud framing maintains continuity across the joint assembly.
